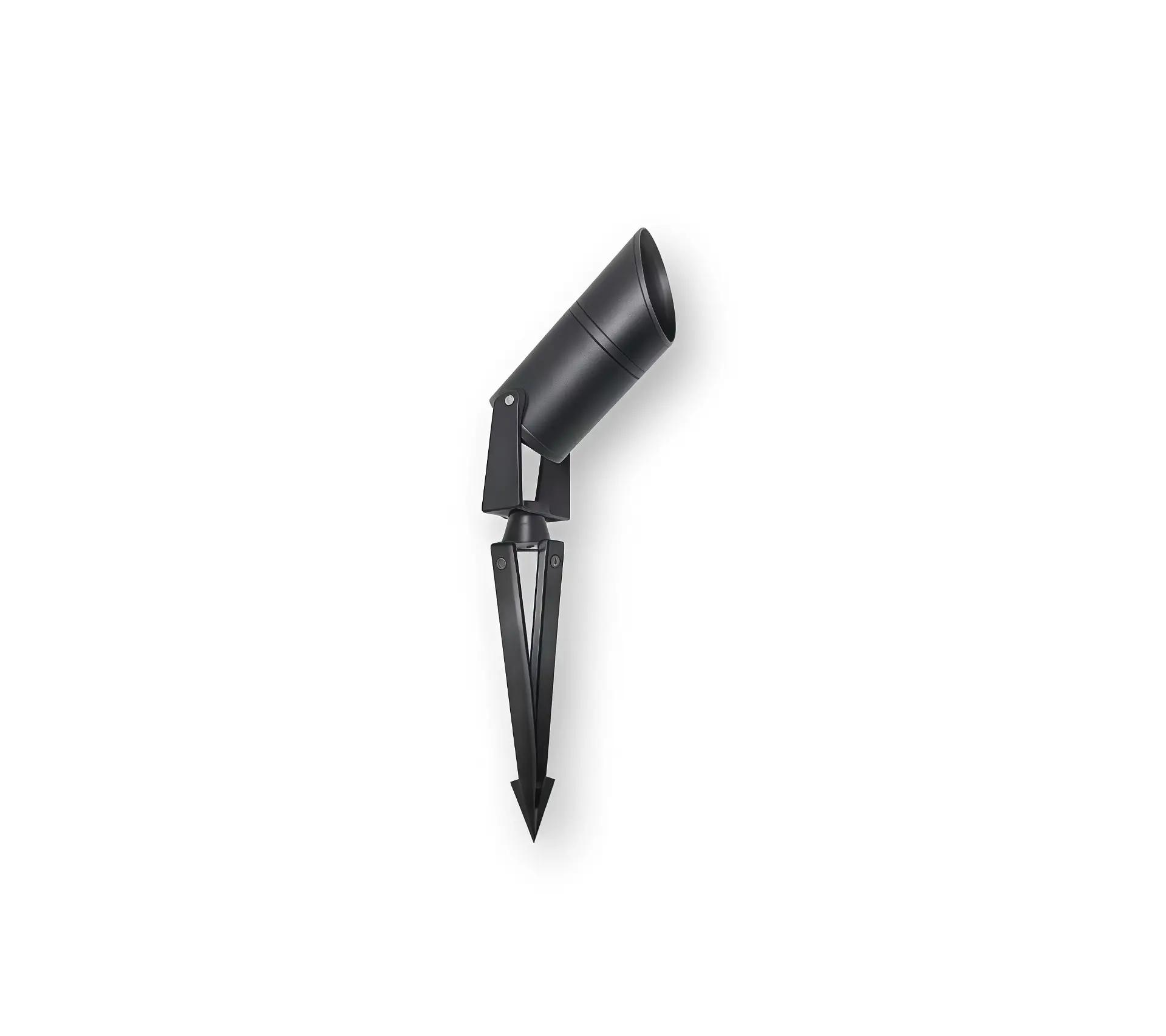

XTS25-615
Floodlights
Miniature adjustable projector range. Contemporary simplicity and a diminutive footprint allows designers to paint landscaping with light whilst avoiding visual clutter.
Technical specifications
– Die-cast aluminum housing
– Pre-treated before powder coating ensuring high corrosion resistance
– Single cable entry
– Stainless steel fasteners in grade 304 with zinc flake coating
– Durable silicone rubber gasket
– High-efficiency lens
– Clear toughened glass
– Integral control gear
– Remote driver is not included for constant current (CC) products
– Remote driver is not included for constant voltage (CV) products
– Plastic ground spike for garden type
Product specifications
Color Rendering Index (CRI) | 80 |
Power Factor | 0.6 |
Protection Class | IP65 |
Material | Glass + Die-cast Aluminum |
Correlated Color Temperature | 3000K-6500K |
Color
COLOR | Silver Gray |
Drak Gray | |
Black |

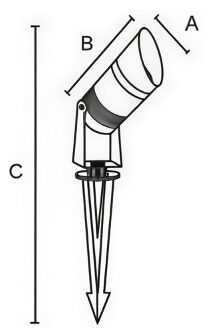

Dimension (mm)
|
POWER |
LM |
Voltage |
A |
B |
C(mm) |
|
5W |
450 |
110-265V |
Φ48 |
158 |
360 |
|
10W |
900 |
110-265V |
Φ60 |
178 |
420 |
|
GU10/G5.3 |
– |
– |
Φ60 |
178 |
420 |
Feature
Optic
