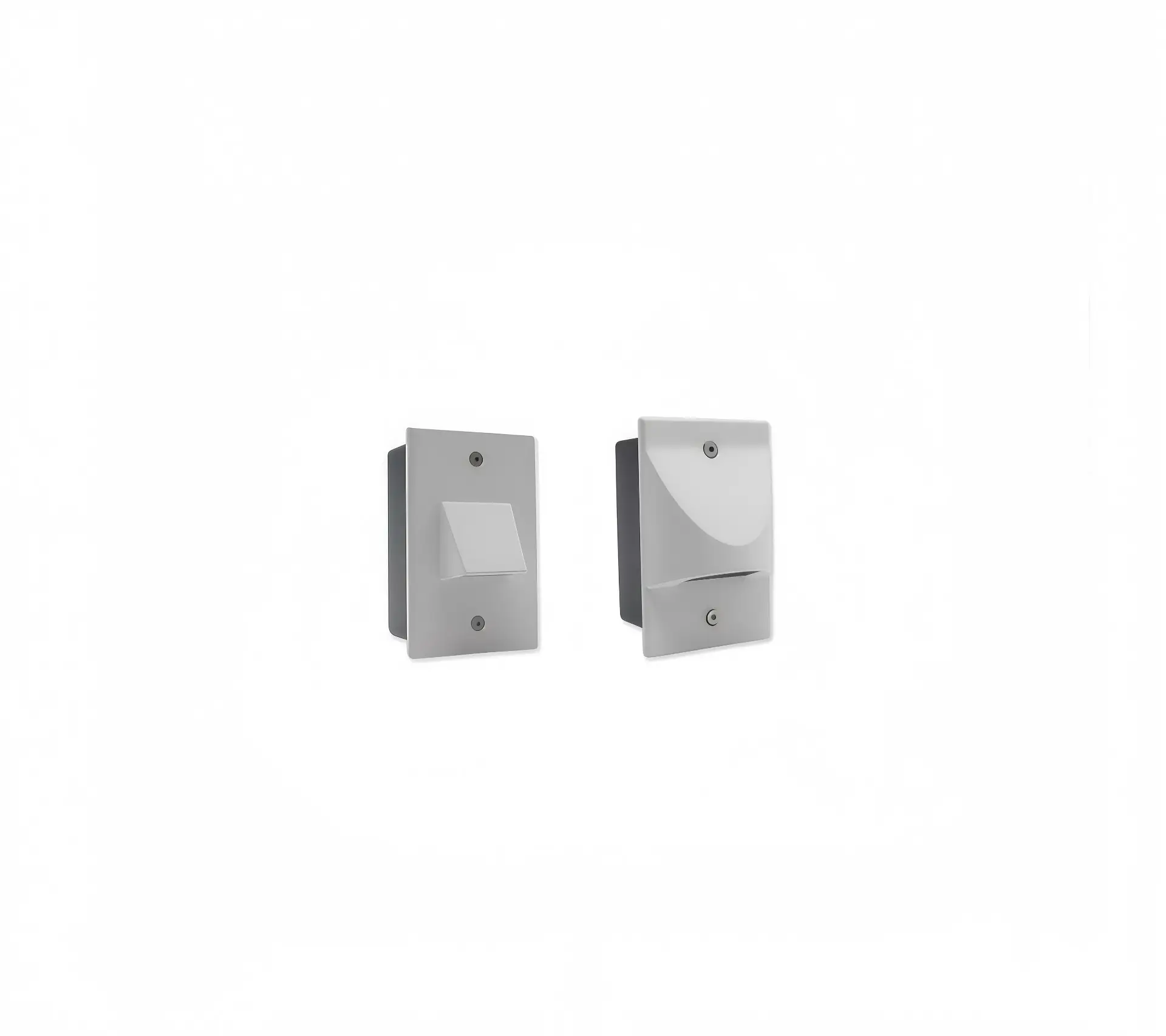

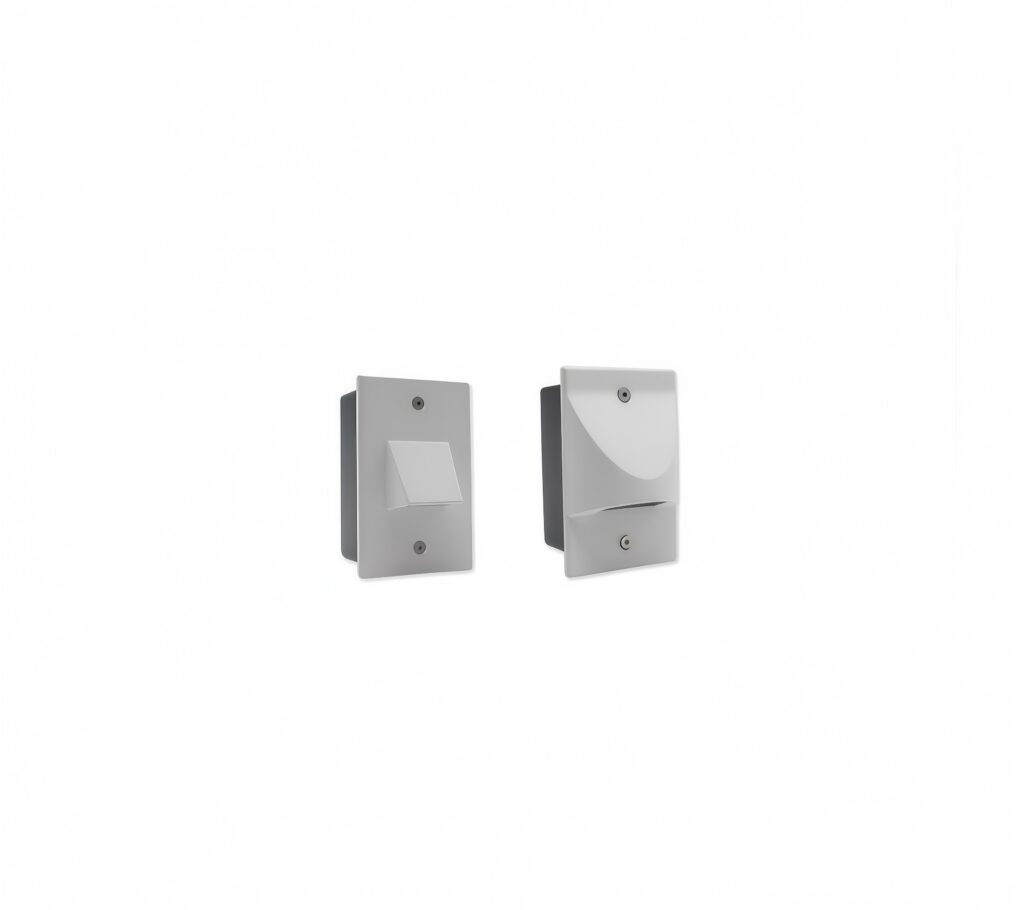

XTRc25-712/713
Recessed Luminaires
Contemporary way finding fixture for glare-free visual comfort. Sophisticated design, with minimal footprint and available with optional surrounds and supply solutions.
Technical specifications
– Die-cast aluminum housing
– Pre-treated before powder coating ensuring high corrosion resistance
– Single cable entry
– Stainless steel fasteners in grade 304 with zinc flake coating
– Durable silicone rubber gasket
– Clear toughened glass
– Integral control gear for LB-40436
– Remote driver is not included for constant current (CC) products
– Remote driver is not included for constant voltage (CV) products
– Recessing box is included

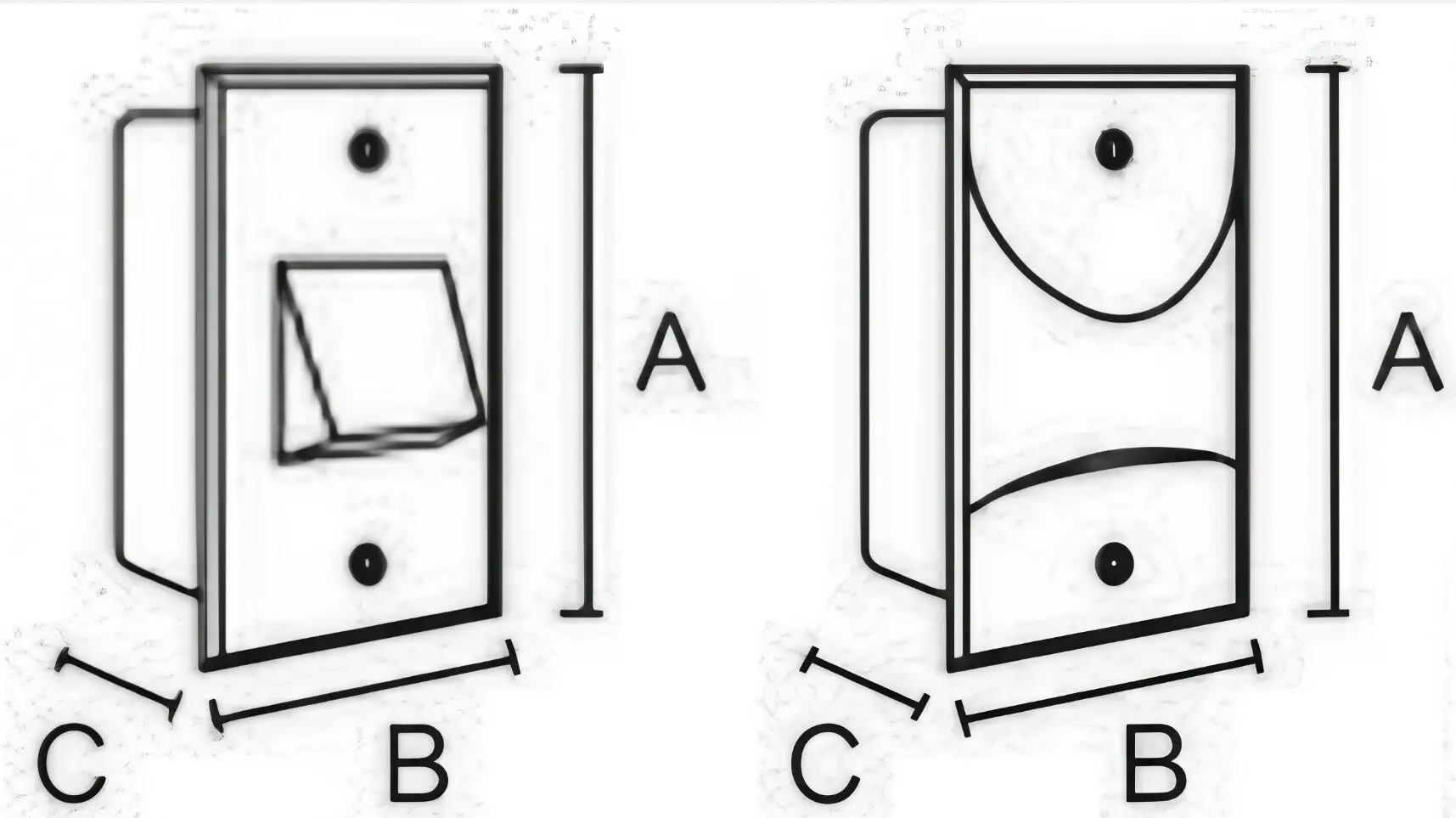

Dimension (mm)
Color
COLOR | Silver Gray |
Drak Gray | |
Black |

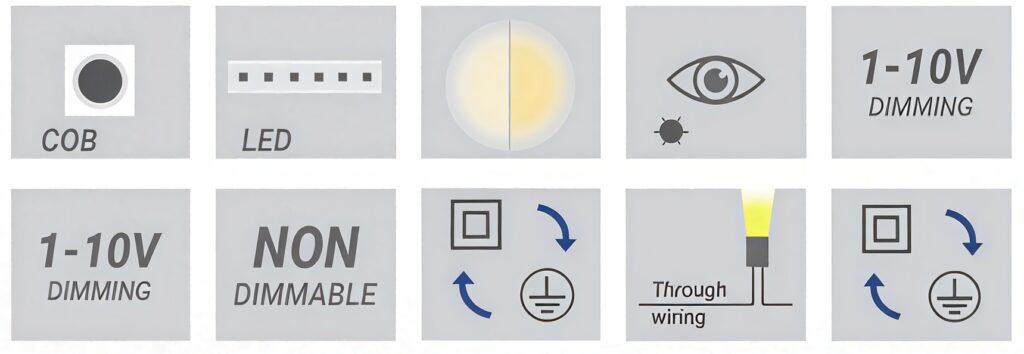

Feature

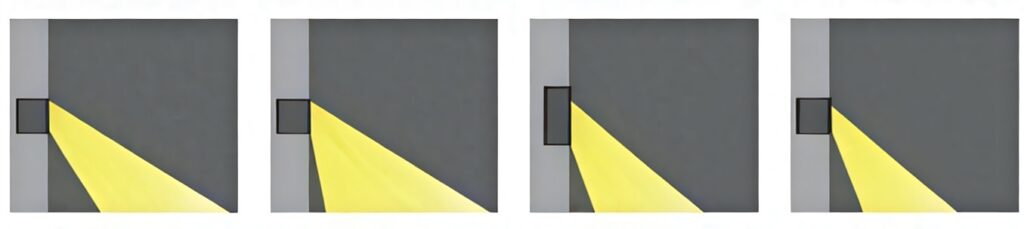

Optic
Product specifications
Color Rendering Index (CRI) | 80 |
Power Factor | 0.6 |
Protection Class | IP54 |
Material | Glass + Die-cast Aluminum |
Correlated Color Temperature | 3000K-6500K |
Cut Out | 100*60*50mm |
POWER | LM | Voltage | A | B | C(mm) |
3W | 60 | 110-265V | 115 | 75 | 50 |
