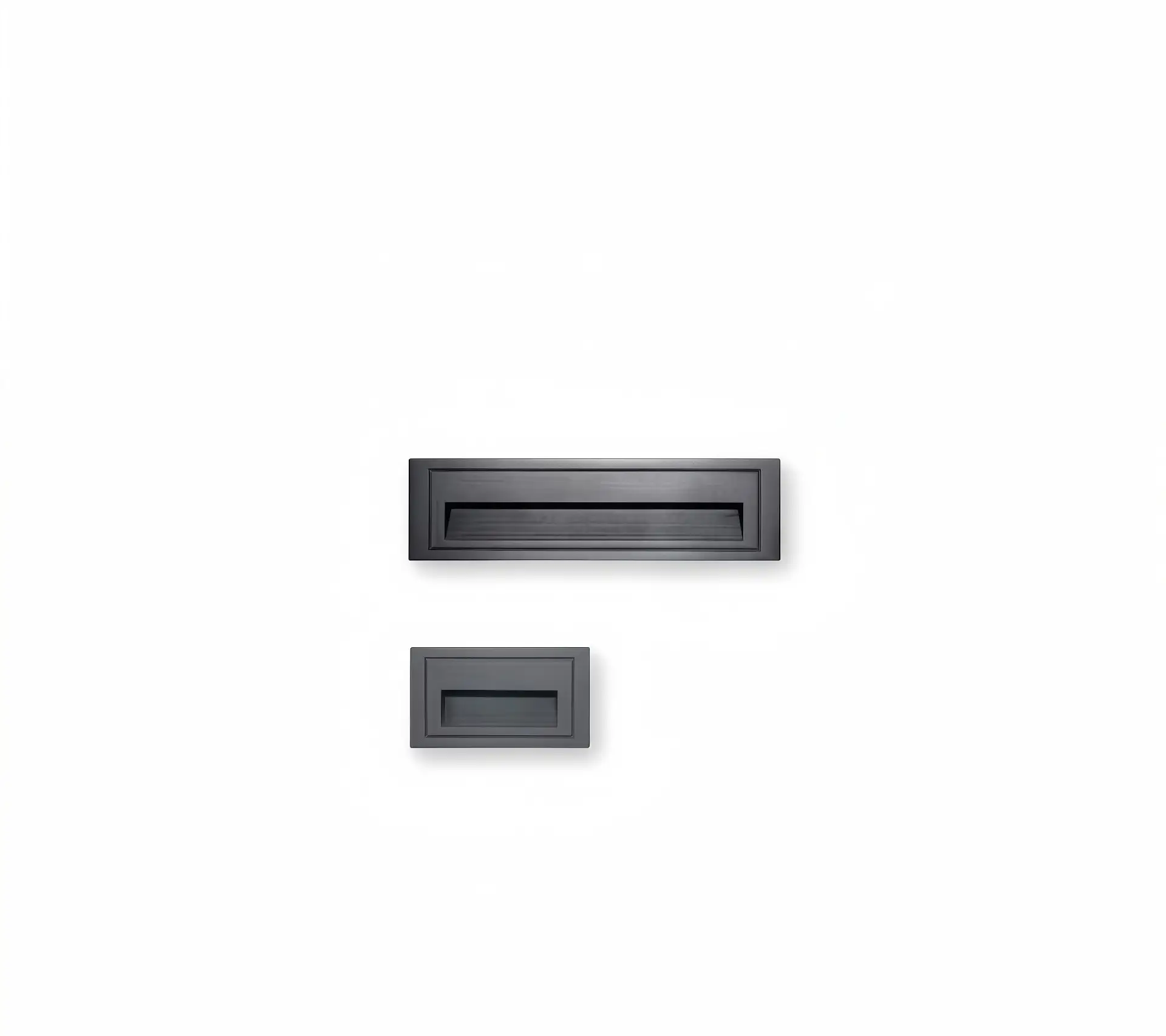

XTRc25-709L/709
Recessed Luminaires
Contemporary way finding fixture for glare-free visual comfort. Sophisticated design, with minimal footprint and available with optional surrounds and supply solutions.
Technical specifications
– Die-cast aluminum housing
– Pre-treated before powder coating ensuring high corrosion resistance
– Single cable entry
– Stainless steel fasteners in grade 304 with zinc flake coating
– Durable silicone rubber gasket
– Clear toughened glass
– Integral control gear for LB-40436
– Remote driver is not included for constant current (CC) products
– Remote driver is not included for constant voltage (CV) products
– Recessing box is included

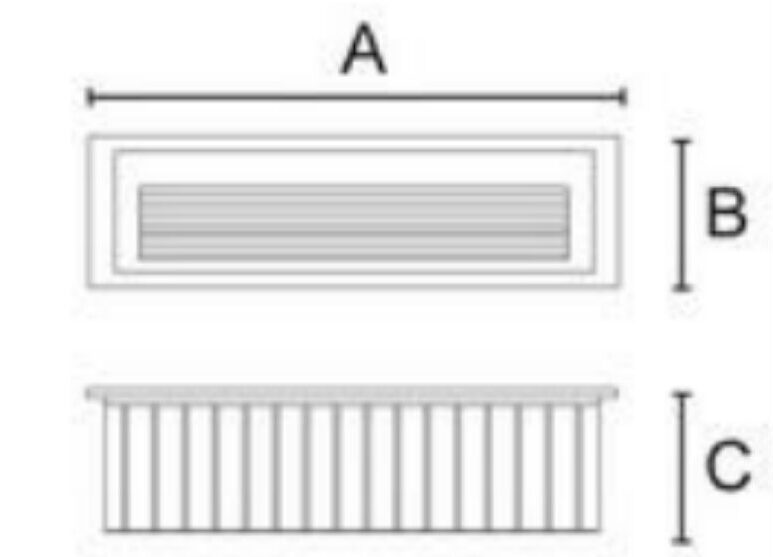

Dimension (mm)
Color
COLOR | Silver Gray |
Drak Gray | |
Black |
Feature
Optic
Product specifications
Color Rendering Index (CRI) | 80 |
Power Factor | 0.6 |
Protection Class | IP54 |
Material | Glass + Die-cast Aluminum |
Correlated Color Temperature | 3000K-6500K |
Cut Out | 200*50*55mm 100*50*55mm |
|
POWER |
LM |
Voltage |
A |
B |
C(mm) |
|
4W |
47 |
110-265V |
210 |
60 |
55 |
|
2W |
22 |
110-265V |
105 |
60 |
55 |
